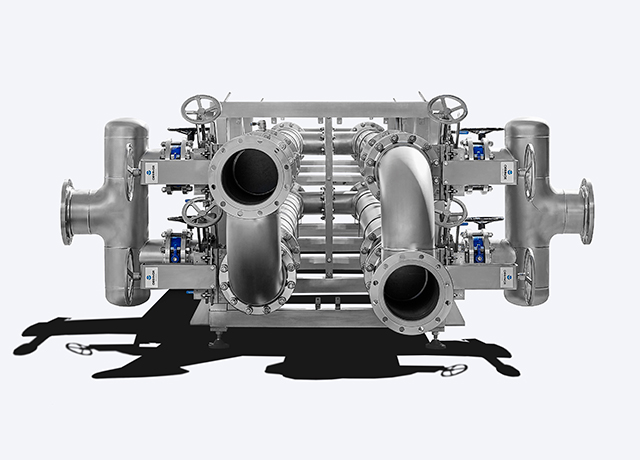

Industrial Multitube Heat Exchangers – HRS K Series

The HRS K Series is a complete stainless steel shell and tube heat exchanger designed for industrial use. The product flows through the interior tubes and the service fluid flows through the surrounding shell.

The K Series is an ideal heat exchanger for steam-to-water applications such as CIP heating. Using HRS corrugation technology, heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, effects of fouling are minimised.

Expansion bellows are fitted to absorb the differential expansion between the shell and the inner tubes and multiple units can be interconnected for larger applications. Options include frame mounting, insulation and stainless steel cladding.

The HRS K Series is suitable for applications with low to medium viscosities, CIP heating and general industrial applications.

TECHNICAL DATA

Standard Materials of Construction:

  • Service side: AISI 304stainless steel
  • Product side: AISI 316L stainless steel
    Other material options available

Standard Connections:

  • Service side: Flange
  • Product side: Tubeplate Flange
    All flange types available

Surface Finish:

  • External: Matt
  • Internal: Descaled
    Other surface finishes available

Design code and compliance:

  • PD 5500, PED 2014/68/EU, ASME
  • TR CU 032, DOSH Compliant

HRS K Series Multi Tube Heat Exchanger
