Multipass Heat Exchangers – HRS MP Series

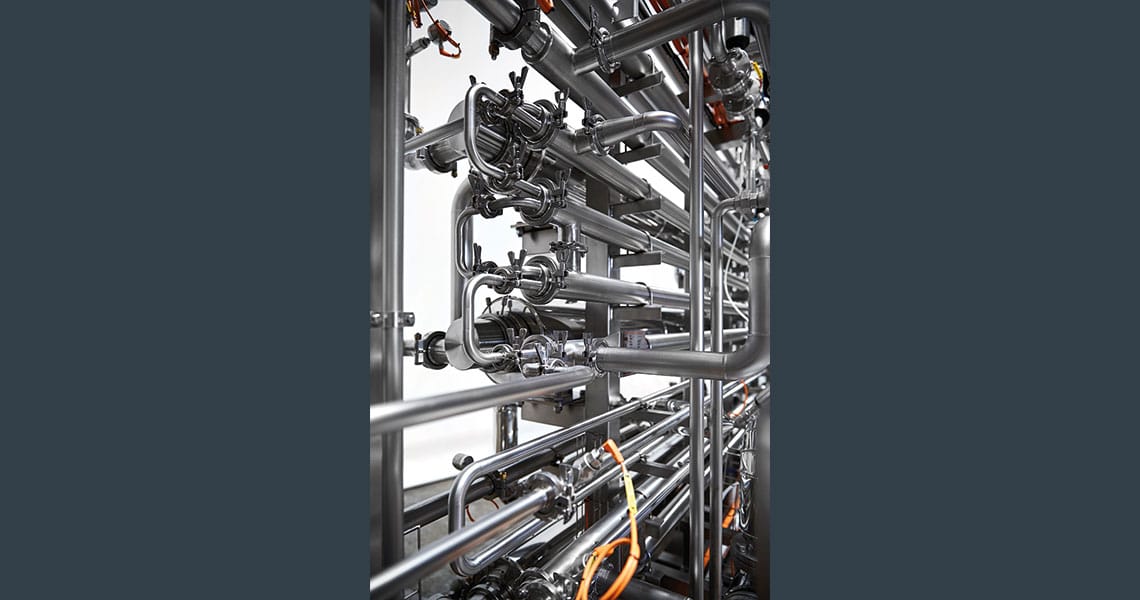

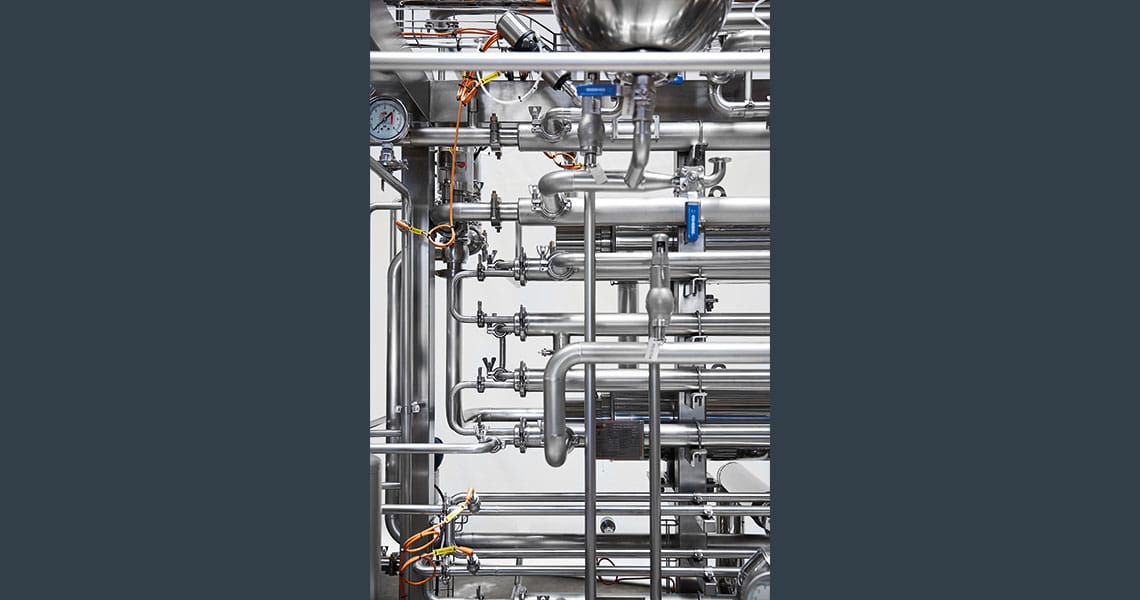

The HRS MP Series is a complete stainless steel multitube heat exchanger, its design is ideal for hygienic and industrial applications.

Using multiple passes on the tube side offers greater flexibility for optimising fluid velocity, pressure drop and heat transfer.

The unique design creates longer thermal length within the same module, avoiding designs with multiple modules and interconnecting bends. Using HRS corrugation technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is minimised.

Expansions bellows are fitted to absorb the differential expansion between the shell and the inner tubes. Multiple units can be interconnected for larger applications. Options include frame mounting, insulation and stainless steel cladding.

The HRS MP Series is suitable for applications which has low to medium viscosity fluids in food industry.


Standard Materials of Construction:

  • Service side: AISI 304/316L stainless steel
  • Product side: AISI 316L stainless steel
    Other material options available

Standard Connections:

  • Service side: Flange
  • Product side: Clamp
    All flange & clamp types available

Surface Finish:

  • External: Polished
  • Internal: <0.8μ
    Other surface finishes available

Design code and compliance:

  • PD 5500, PED 2014/68/EU, ASME
  • FDA, TR CU 032, DOSH Compliant
